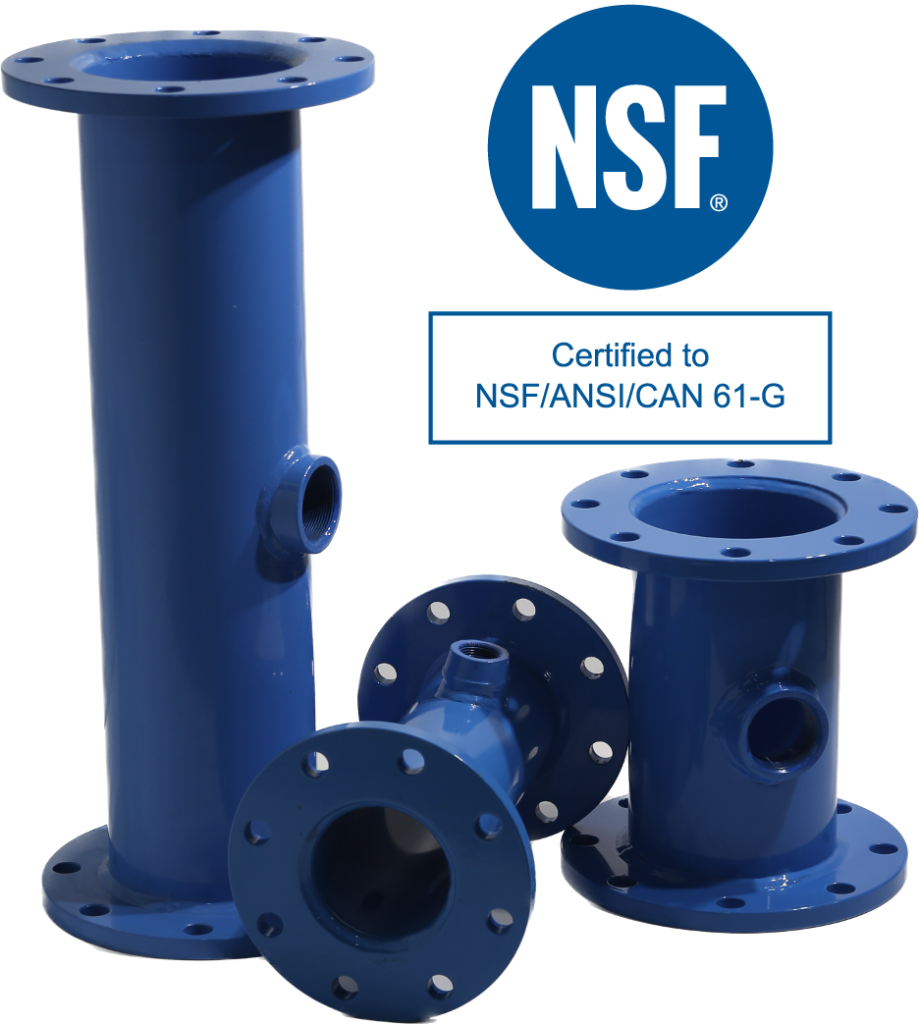

Fabricated Spools

Changing out old water meters for new ones can mean changes in water meter sizes. Advancements in water meter design has led to meters leaving Utility Water Departments and Water Meter Shops with gaps in lay lengths to address upon installation. MARS fabricated spools with or without test ports are used as spacers to make up this difference when exact lay lengths are needed.

MARS Test Port Spools assist in testing the water meter for accuracy without the need to remove the meter from the field, expediting time and giving you your test results faster. Our standard size coupling is 2” Carbon Steel with custom sizes available, just specify your requirement.

As a sole source, MARS Company Spools comply with all AWWA C207 design requirements and AWWA C213 material requirements. NSF61 Certified.

Features & Specifications

  • NSF61 Certified
  • Durable Epoxy Coating
  • High Impact Resistance
  • Produced in Any Size or Quantity
  • Minimum 20 Year Corrosion Resistance
  • Fully Sandblasted Steel & Primer Treated Before Total Bonding
  • One-Third the Weight of Other Vendors’ Products
  • Control Epoxy Coating: Ensures durability and corrosion resistance.
  • Material Body: Constructed from Schedule 40 Steel Pipe for strength.
  • Flanges: Comply with AWWA C707 Class D specifications.
  • Seams: Precision-welded for leakproof operation.
  • Operating Pressure: Rated for up to 150 PSI, accommodating most system demands.
  • Sizes (Oval): Ranging from 1.5” to 2” for versatile applications.
  • Sizes (Round): From 3” to 12”, covering a broad spectrum of requirements.
  • Custom Sizes: Tailored dimensions available to meet unique project specifications.
